import torch
import torch.nn as nn
import numpy as np

class MaskAttention(nn.Module):
    #Atención enmascarando subsecuentes
    def __init__(self, d_model):
        super(MaskAttention, self).__init__()
        self.d_model = d_model
        self.Q = nn.Linear(d_model, d_model, bias=False)
        self.K = nn.Linear(d_model, d_model, bias=False)
        self.V = nn.Linear(d_model, d_model, bias=False)

    def forward(self, x):
        query, key, value = self.Q(x), self.K(x), self.V(x)
        scores = torch.matmul(query, key.T)/np.sqrt(self.d_model)
        #Enmascaramiento de los scores
        mask  = self.masking(x)
        scores = scores.masked_fill(mask == 0, -1e9)
        att = nn.functional.softmax(scores, dim=-1)
        h = torch.matmul(att, value)

        return h, att

    def masking(self, x):
        #Creación de la máscara
        n = x.size(0)
        subsequent_mask = np.triu(np.ones((n, n)), k=1).astype('uint8')

        return torch.from_numpy(subsequent_mask) == 0

import copy

class MultiHeadMaskAttention(nn.Module):
    def __init__(self, in_size, d_model, hidden=128, heads=3, dropout=0.3):
        super(MultiHeadMaskAttention, self).__init__()
        self.d_model = d_model
        #Embedding y codificación posicional
        self.enc = Encoding(in_size, d_model)
        #Auto-atención enmascarada
        self.att = nn.ModuleList([copy.deepcopy(MaskAttention(d_model)) for _ in range(heads)])
        #Capa linear para multi cabezas
        self.lin = nn.Linear(heads*d_model, d_model, bias=True)
        #Normalización
        self.norm = LayerNorm(d_model)
        #Red feedforward
        self.ffw = nn.Sequential(nn.Linear(d_model, hidden), nn.ReLU(),
                                nn.Linear(hidden, d_model))
        self.drop1 = nn.Dropout(p=dropout)
        self.drop2 = nn.Dropout(p=dropout)
        self.drop3 = nn.Dropout(p=dropout)

    def forward(self, x):
        x_e = self.enc(x)
        x_e = self.drop1(x_e)
        head_att = [head(x_e) for head in self.att]
        self.att_weights = [head[1] for head in head_att]
        heads = [head[0] for head in head_att]
        multi_heads = torch.cat(heads, dim=-1)
        h = self.lin(multi_heads)
        h_norm = x_e + self.norm(h)
        h_norm = self.drop2(h_norm)
        out = self.ffw(h)

        return self.drop3(h_norm + self.norm(out))

import pandas as pd
import matplotlib.pyplot as plt
from seaborn import heatmap as hm
from tqdm import tqdm
from transformers import *

#Corpus a utilizar
corpus = ['el perro come un hueso', 'un muchacho jugaba', 'el muchacho saltaba la cuerda',
          'un perro come croquetas', 'el perro come', 'el gato come croquetas',
          'un gato come', 'un muchacho jugaba con la cuerda', 'el muchacho jugaba con la cuerda']
corpus = [w.split() for w in corpus]
#Creación del vocabulario
voc = vocab()
voc['[bos]'] = 0
voc['[eos]'] = 1
#Indexación de cadenas
sents = list(index(corpus, voc))

#Pares de entrenamiento
x = [torch.cat((torch.tensor([voc['[bos]']]),s), axis=0) for s in sents]
y = [torch.cat((s, torch.tensor([voc['[eos]']])), axis=0) for s in sents]
print(x[0], y[0])

tensor([0, 2, 3, 4, 5, 6]) tensor([2, 3, 4, 5, 6, 1])

len_voc = len(voc)
model = nn.Sequential(MultiHeadMaskAttention(len_voc, 128, heads=3),
                      nn.Linear(128,len_voc), nn.Softmax(1))

#Carga del modelo
#model_heads.load_state_dict(torch.load('mask_att.model'))
#model_heads.eval()

#Función objetivo
loss = nn.CrossEntropyLoss()
#Optimizador
optimizer = torch.optim.Adam(model.parameters(), lr=0.001, weight_decay=0.01 )
#Núm de épocas
epochs = range(100)

#Entrenamiento
for t in tqdm(epochs):
    for x_i, y_i in zip(x,y):
        prediction = model(x_i)
        optimizer.zero_grad()
        loss_value = loss(prediction, y_i)
        loss_value.backward()
        optimizer.step()

#torch.save(model.state_dict(), 'model.model')

100%|█████████████████████████████████████████| 100/100 [00:11<00:00,  8.97it/s]

devoc = {i:t for t,i in voc.items()}
def result(text, model):
    #Función para predecir la siguiente palabra dado el contexto
    tokens = text.split()
    x = torch.tensor([voc[t] for t in tokens])
    pred = model(x)
    max_token = pred.argmax(axis=1).detach().numpy()

    return pred.detach().numpy(), ' '.join([devoc[i] for i in max_token])

p, pred_text = result('[bos]', model)
print('Palabra siguiente con mayor prob: {}'.format(pred_text))

#Visualización de probabilidades más altas
args = np.argsort(p[-1])[::-1]
probs = np.sort(p[-1])[::-1]
pd.DataFrame(data=probs, columns=['prob. tóken'], index=[devoc[j] for j in args]).plot.bar()
plt.show()

Palabra siguiente con mayor prob: el

text = '[bos] un gato come'
result(text, model)

for i, att_w in enumerate(model[0].att_weights):
    hm(att_w.detach().numpy(), xticklabels=text.split(), yticklabels=text.split(), vmin=0, vmax=1)
    plt.title('Atención en cabeza %i' %i)
    plt.show()

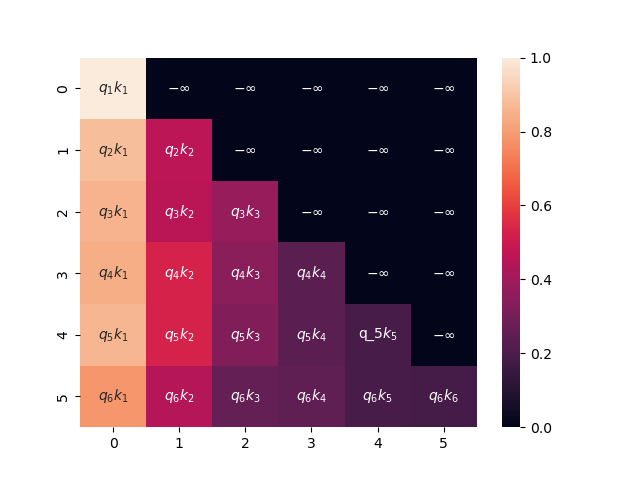

Auto-atención enmascarada¶

Aplicación de la auto-atención enmascarada¶

Referencias¶
